How to Rebuild a DeWalt DCB205 20V MAX 5.0Ah Battery Pack (5S2P, 18650)
A DCB205 that dies after ten seconds of trigger time almost never has a bad BMS. It has one tired pair of cells, and the protection board is doing its job by shutting the whole pack down to save them. This guide walks the full rebuild — diagnosis, cell selection, spot welding, BMS wiring, and first charge — for the most common 20V MAX pack on the market.
Budget about two hours for your first one. The second takes forty minutes.
What's actually inside a DCB205
The DCB205 is a 5S2P pack: five groups wired in series, two 18650 cells wired in parallel inside each group. Ten cells total.
- Nominal voltage: 18V (5 × 3.6V)
- "20V MAX": the off-the-charger peak, 21.0V (5 × 4.2V) — marketing name, same battery
- Rated capacity: 5.0Ah, which needs 2500mAh cells in a 2P arrangement
- Low-voltage cutoff: roughly 15V (3.0V per group)
If the 5S2P layout is new to you, the breakdown of why every 18V brand uses this design covers the reasoning before you start cutting.
Why these packs fail
Series-wired packs are governed by their weakest link. The BMS monitors all five groups and cuts output the moment any one of them hits the floor — so a single degraded pair takes the entire pack offline while the other four groups still hold most of their charge.
Cells drift apart for ordinary reasons: the groups nearest the terminal block run hotter, one cell arrives from the factory slightly weaker, or the pack sat at full charge in a hot truck for two summers. The shell, terminal block, fuel gauge and protection board usually outlive the cells by years. That asymmetry is the entire case for rebuilding.
Symptoms that point at cells rather than electronics:
- Pack runs for seconds under load, then cuts out cold — no heat, no smell
- Charger blinks a fault immediately, or completes a "charge" in two minutes
- Fuel gauge reads full, tool disagrees
- Pack reads well under 15V at rest on a multimeter
What you need

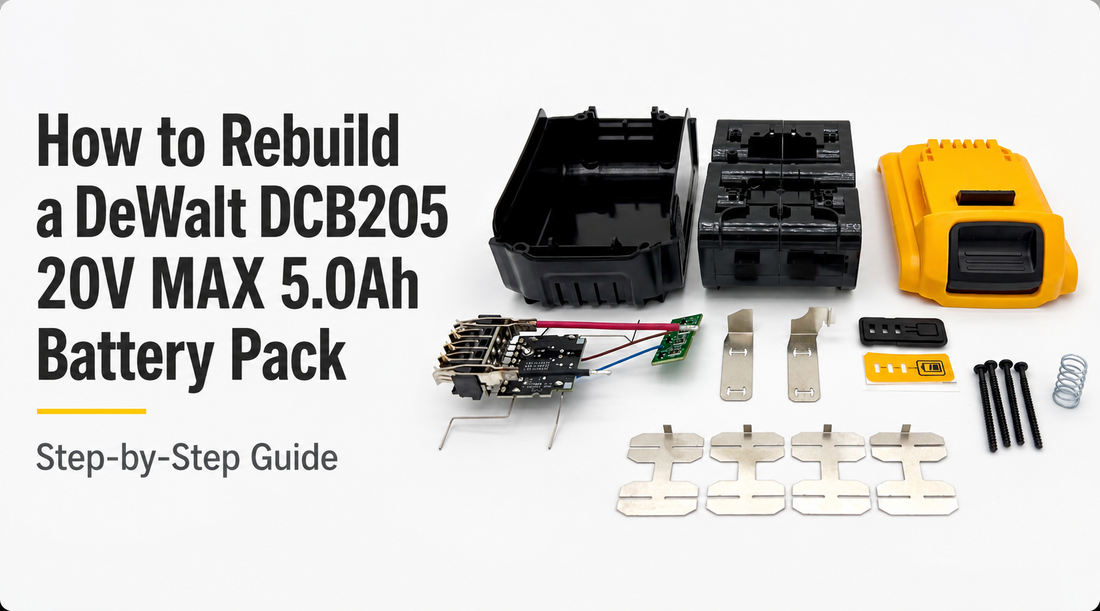

The rebuild kit below is a complete matched set — protection board, housing, nickel and hardware — with cells supplied separately so you can choose your own.
You need ten 18650 cells. At 2500mAh each, a 2P group gives you 5000mAh — the DCB205's factory rating exactly, with no asterisk on the label.
Insulator rings go under the positive terminal of every cell. They are two cents of paper that prevent the most common shorting failure in a rebuilt pack — nickel folding over the crimped edge of the can and finding negative.
The kit ships with nickel. Keep a roll on hand if you plan to rebuild more than one pack, or if you want heavier strip than stock for a high-draw tool.
Tools: a small Torx bit set (including security/pin-in-head bits), a spot welder (not a soldering iron — see below), a multimeter, plastic pry tools, and side cutters.
Step 1 — Open the old pack
You are opening the original pack for two reasons: to confirm the diagnosis, and to harvest any cells still worth keeping. The rebuild itself uses the kit's own housing.
DCB205 shells are held together with Torx screws — the six-pointed star drive. Sizes vary across pack revisions, so size the bit against your own pack rather than buying ahead: seat a few from a small Torx set until one grips with no play. If a bit seats but still slips, look into the recess for a small pin standing up in the middle — that's a security Torx, and it needs a bit with a hole bored down the centre. Screws sit in recesses on the bottom face, and one is sometimes hidden under the label.
With the screws out, work a plastic pry tool along the seam. The halves separate cleanly; the terminal block stays attached to the upper half by short leads, so lift rather than pull.
Before you disconnect anything, photograph the pack from three angles. You want the balance lead colours and their order on the connector, the orientation of the cell stack, and where the main B+ and B− tabs land. This photo is worth more than any diagram when you are reassembling at midnight.
Step 2 — Diagnose, then decide what to keep
Probe each of the five groups in turn with your multimeter, negative-most first. On a healthy pack all five sit within about 0.05V of each other. A rebuild candidate typically shows four groups near 3.7V and one down at 2.4V or lower.
| Group reading (at rest) | What it means | Action |
|---|---|---|
| 3.6 – 3.9V, all five matched | Cells are fine; fault is elsewhere | Check terminal block and BMS before rebuilding |
| One group 0.3V+ below the rest | Classic drift — the pack's usable capacity is gone | Rebuild |
| Any group under 2.0V | Deeply discharged, copper shunt risk | Retire those cells — do not recharge them |
| Whole pack at 0V | BMS latched off, or an open joint | Measure groups individually before condemning cells |
Cells you plan to reuse need proper testing, not a voltage glance — capacity and internal resistance are what matter. Our guide on how to tell whether a used cell is still good covers the procedure. When in doubt, replace all ten. Mixing a tired cell into a fresh pack recreates the failure you just fixed.
Step 3 — Match your cells
Before a single weld, charge all ten new cells and confirm they sit within 0.05V of one another. Cells from the same batch normally arrive matched, but check anyway — this is thirty seconds that determines whether the pack balances for five years or fights itself from day one.
Apply an insulator ring to the positive end of every cell. The ring covers the crimped rim and leaves only the raised button exposed.
Step 4 — Lay out the 5S2P stack
Two cells per group, five groups, wired positive-to-negative down the chain. Alternate the orientation of each group so the connection from one group to the next is a short hop rather than a strip running the length of the pack.
The chain runs: B− → G1 → G2 → G3 → G4 → G5 → B+
Within a group, both cells face the same direction and their like terminals are bridged — that is the parallel joint. Between groups, positive meets negative — that is the series joint. Getting one group flipped is the single most common assembly error, and it is much easier to catch now than after twenty welds.
Step 5 — Spot weld
Use a spot welder, not a solder iron. Soldering directly to a cell can dumps sustained heat into the cell through the very end where the safety vent and internal separator live. A spot weld delivers its energy in a few milliseconds and leaves the cell body cool.
Nickel sizing depends on what the tool draws. Series joints carry the full pack current; parallel joints carry roughly half, since the two cells share the load.
- 0.15mm × 8mm — drills, drivers, lights, general-duty packs
- 0.2mm × 10mm — circular saws, grinders, anything that stalls under load
The complete nickel strip sizing guide works through the current maths if you want to size it against your specific tool rather than a rule of thumb.
Technique: two pulses per joint, spaced a few millimetres apart. After each weld, tug the strip firmly with a fingernail. A good weld tears the nickel before it releases the cell. A weld that peels off clean was never a weld — it was a scorch mark, and it will fail as an open circuit six months into service.
Step 6 — Wire the BMS
This is where rebuilds get destroyed. A 5S board takes six connections: B0 (pack negative), then B1 through B5, each tapping the positive side of its group in ascending order.
Connect B0 first, then work upward. Before you seat the connector, probe each tap against B0 and confirm you read a rising ladder:
- B1 ≈ 3.7V
- B2 ≈ 7.4V
- B3 ≈ 11.1V
- B4 ≈ 14.8V
- B5 ≈ 18.5V (this is also full pack voltage)
If any reading is out of sequence, reversed, or zero, stop and find it. Seating a balance connector with the leads in the wrong order will take the protection board with it, and the board is the expensive part of the kit.
Lay the insulating paper between the top of the cell stack and the underside of the board. Nothing conductive should be able to migrate between them.
Step 7 — First charge and verification
Fit the stack into the kit housing, seat the terminal block, and check the pack voltage at the tool contacts before closing it up. You should read close to 18.5V.
Put it on the DeWalt charger and stay in the room. Watch for the charger to acknowledge the pack and begin a normal cycle. Any heat you can feel through the shell in the first five minutes means stop and open it back up.
A completed charge should read 21.0V at the terminals. Let the pack rest for an hour, then measure each group one last time — all five within 0.03V of each other is a pack that will stay balanced. Then run it down in a tool and charge it once more before putting it into service.
Troubleshooting
| Symptom | Most likely cause |
|---|---|
| Charger refuses the pack entirely | Balance connector seated wrong, or the thermistor lead not reconnected |
| Tool won't run, but pack reads 21V | BMS in protection latch — cycle it on the charger to reset |
| Pack reads roughly 3.7V low | One group open — a failed weld, usually a series joint |
| Cuts out under load, recovers at rest | Undersized nickel, or a weak weld dropping voltage under current |
| Groups drift apart within weeks | Mismatched cells, or a reused cell that should have been retired |
Safety
- Work on an insulated, non-conductive surface with no loose metal within reach
- Never short a cell group, even briefly — 18650 cells deliver enough current to weld tools to themselves
- Do not recharge any cell found below 2.0V
- Keep a sand bucket or a lidded metal container nearby; do not use water on a lithium fire
- A cell that is dented, swollen, leaking, or smells sweet goes straight to recycling
