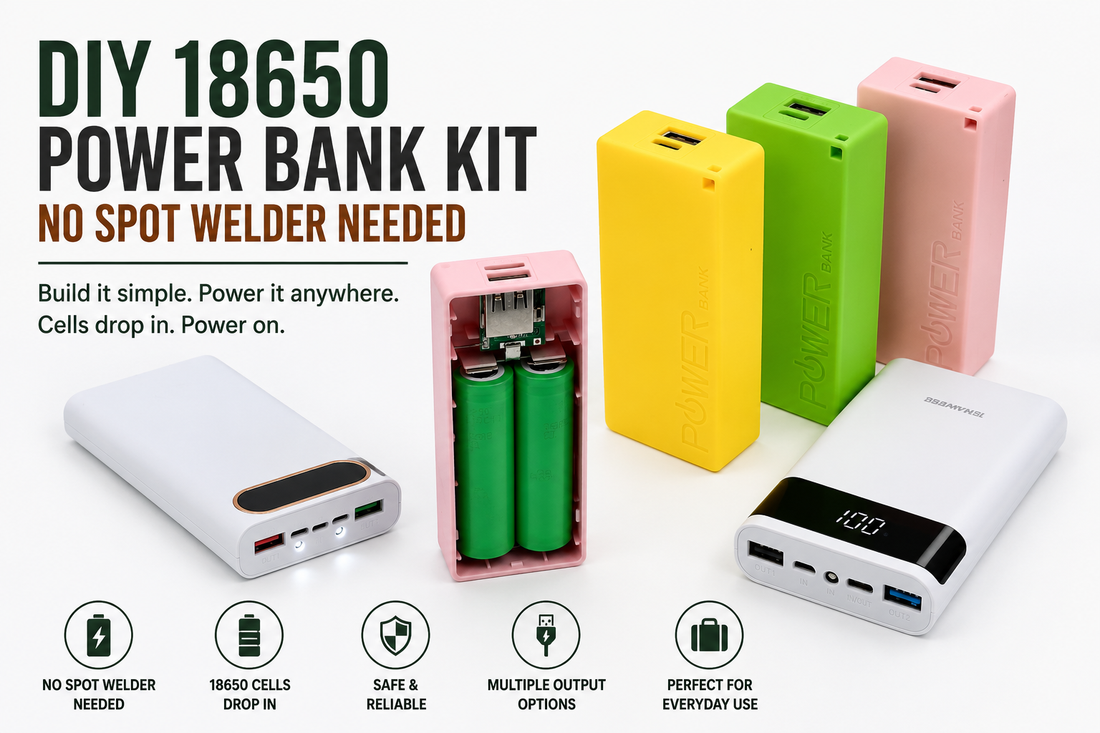

Build a DIY Power Bank — No Spot Welder Needed
Almost every lithium build starts with the same obstacle: you need a spot welder. That’s a hundred dollars or more spent before you’ve bought a single cell, and it stops a lot of people who’d otherwise enjoy this.
Power bank kits are the exception. They use spring contacts and cell holders instead of welded nickel, so the cells drop in and lift out. No welder, no soldering to a cell, nothing permanent. If you’ve never built a pack before, this is where to start — and if you have, it’s still the fastest way to turn spare cells into something useful.
What’s actually in a kit
A power bank kit is an enclosure plus a circuit board. The board handles four jobs at once: charging the cells from USB-C or micro-USB, protecting them from over-charge and over-discharge, boosting the cell voltage up to the 5 V that USB needs, and driving whatever display or indicator lights the case has.
You supply the cells. That’s the whole build.
The maths nobody explains: why your 5000 mAh build isn’t 5000 mAh
This is the single most common disappointment in DIY power banks, and it isn’t a fault — it’s physics.
Lithium cells sit at about 3.6 V nominal. USB delivers 5 V. The boost converter has to trade current for voltage to bridge that gap, and it loses a little to heat on the way.
Take two 2500 mAh cells in parallel:
- 5000 mAh × 3.6 V = 18 Wh of stored energy
- 18 Wh ÷ 5 V = 3600 mAh available at the USB port, in theory
- × ~90% converter efficiency = roughly 3200 mAh actually delivered
Rule of thumb: multiply your total cell capacity by about 0.65 to get real-world USB output. A 5000 mAh build charges a typical 3000 mAh phone once, with a little left over.
This is also, incidentally, why a commercial power bank advertised at 10,000 mAh only gets your phone through two charges. They’re quoting cell capacity, not delivered capacity. Now you know to check which number you’re being sold.
Pick your kit
Pocket sized — two cells, keychain
The smallest useful build. Two 18650s, a keyring loop, USB output. Real-world output around 3200 mAh with 2500 mAh cells — one phone charge you can clip to a bag.
Everyday carry — dual USB, fast charge, LCD
A step up: quick-charge output and an LCD showing exact percentage rather than four guessing lights. This is the one to build if it’s going to live in a bag and get used daily.
Maximum capacity — 21700 cells, USB-C
21700 cells hold substantially more than 18650s, so the same number of slots gives you a noticeably longer-lasting bank. Worth it if you want to charge a laptop-class device or go several days between top-ups.
Now pick your cells
Power banks are the one lithium application where you should chase capacity rather than discharge current. A phone pulls a couple of amps at most, so a 30 A cell buys you nothing here — unlike a power tool pack, where current is everything.
What matters instead:
- Match your cells. Cells sitting in parallel must be the same model, the same age, and at a similar state of charge. Mismatched cells dump current into each other the moment you close the case.
- Don’t use salvaged cells you haven’t tested. A tired cell in a sealed case that lives in your bag is not where you want to find out.
- Check the format. An 18650 kit takes 18650s only. 21700s are 3 mm wider and will not fit.
Building it
- Check every cell first. Resting voltage and, if you have a meter for it, internal resistance. Cells going in parallel should be within about 0.05 V of each other.
- Mind the polarity. The holders are marked. Flat-top and button-top cells sit slightly differently in some kits — if a cell rattles or won’t make contact, that’s usually why.
- Test before you close it. Plug a phone in and confirm output, then confirm it charges. Easier now than with the case clipped shut.
- Charge it fully once and leave it an hour. If any cell gets noticeably warm, take it out and test it separately.
A note on safety
The board in these kits includes protection, but it protects the pack as a whole — it can’t rescue you from a cell that was already damaged. Don’t build with cells that are dented, swollen, sitting below 2.0 V, or of unknown history. A power bank lives in a bag pressed against other things, which is the worst possible place for a marginal cell.
