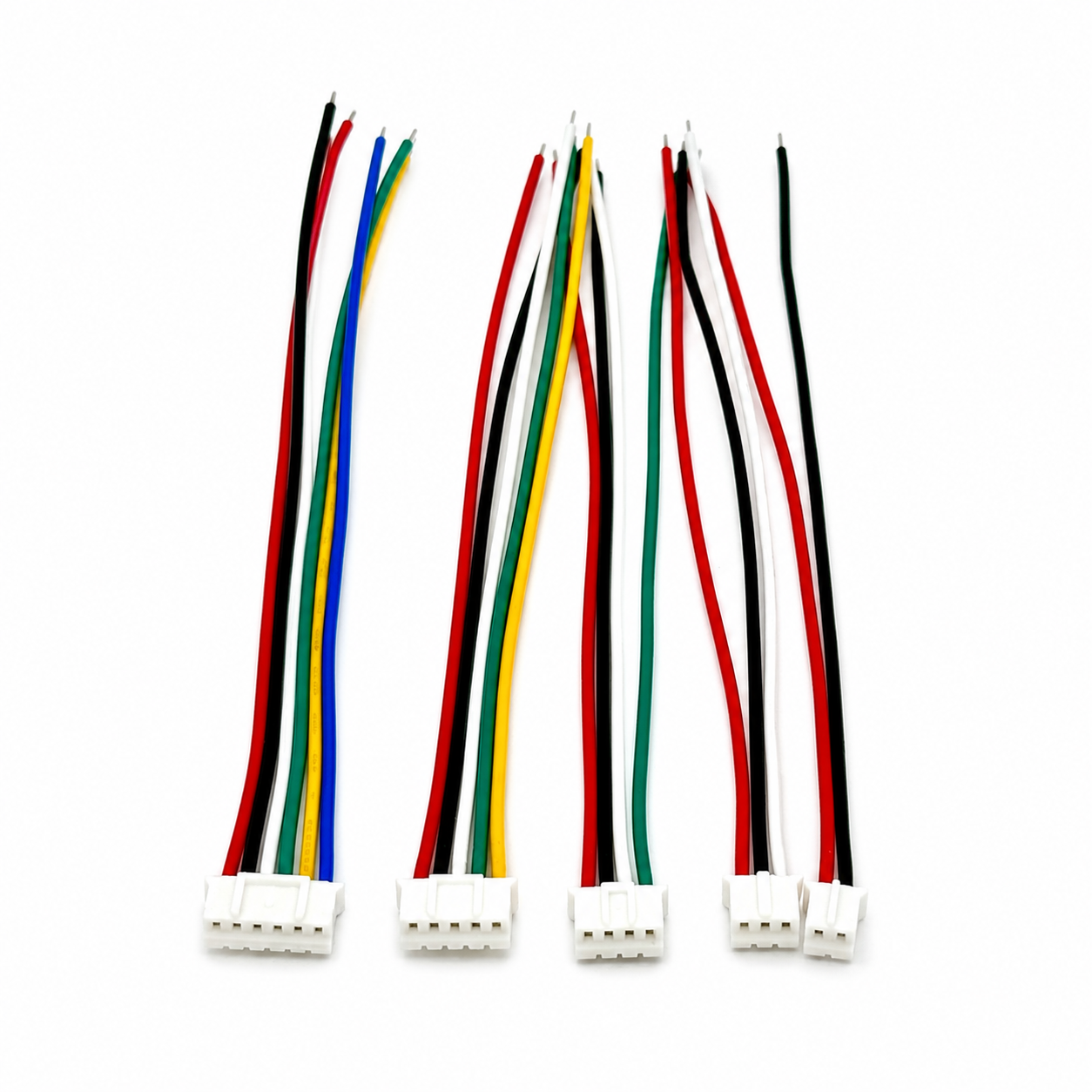

JST PH2.0 Connector Pigtail 10-Pack – Pre-Wired 24 AWG Leads (2–6 Pin)

JST PH2.0 Connector Pigtails — 10-Pack, Pre-Wired 24 AWG Leads, 2 to 6 Pin

A 10-pack of single-ended JST PH2.0 connector pigtails — each with a pre-crimped connector housing on one end and tinned, open wire ends on the other, ready to solder into your project. Ideal for battery packs, RC and FPV builds, 3D printers, robotics, LED strips, sensors, and PCB power/signal connections. Choose your pin count above.

What You Get

• Ten (10) JST PH2.0 pigtails in your selected pin count
• Wire-side receptacle housing that mates with standard PH2.0 (2.0 mm pitch) pin headers
• Connector on one end, tinned open leads on the other

Color-Coded Wires

Every pigtail follows a consistent color order, so a given pin is always the same color no matter the pin count — which makes wiring and troubleshooting much easier. Pin 1 is Red (right side) and Pin 2 is Black, then:

• Pin 1 — Red
• Pin 2 — Black
• Pin 3 — White
• Pin 4 — Green
• Pin 5 — Yellow
• Pin 6 — Blue

Specifications

• Connector: JST PH2.0, 2.0 mm pitch
• Housing: White nylon
• Terminals: Tin-plated
• Wire: 24 AWG (UL1007), ~150 mm, tinned open ends
• Pack: 10 pigtails of the selected pin count
• Pin counts: 2, 3, 4, 5, and 6 pin
• Condition: Brand new

Common Uses

• Battery packs, RC, FPV, drones, and robotics wiring
• 3D printers, LED strips, and sensors
• PCB power and signal connections
• Custom adapter and extension cables

Ships from California — fast U.S. delivery.
