Pre-Cut Copper Busbar Set (Nickel Pads) – Milwaukee M18 8.0Ah 21700 – 6 Pcs

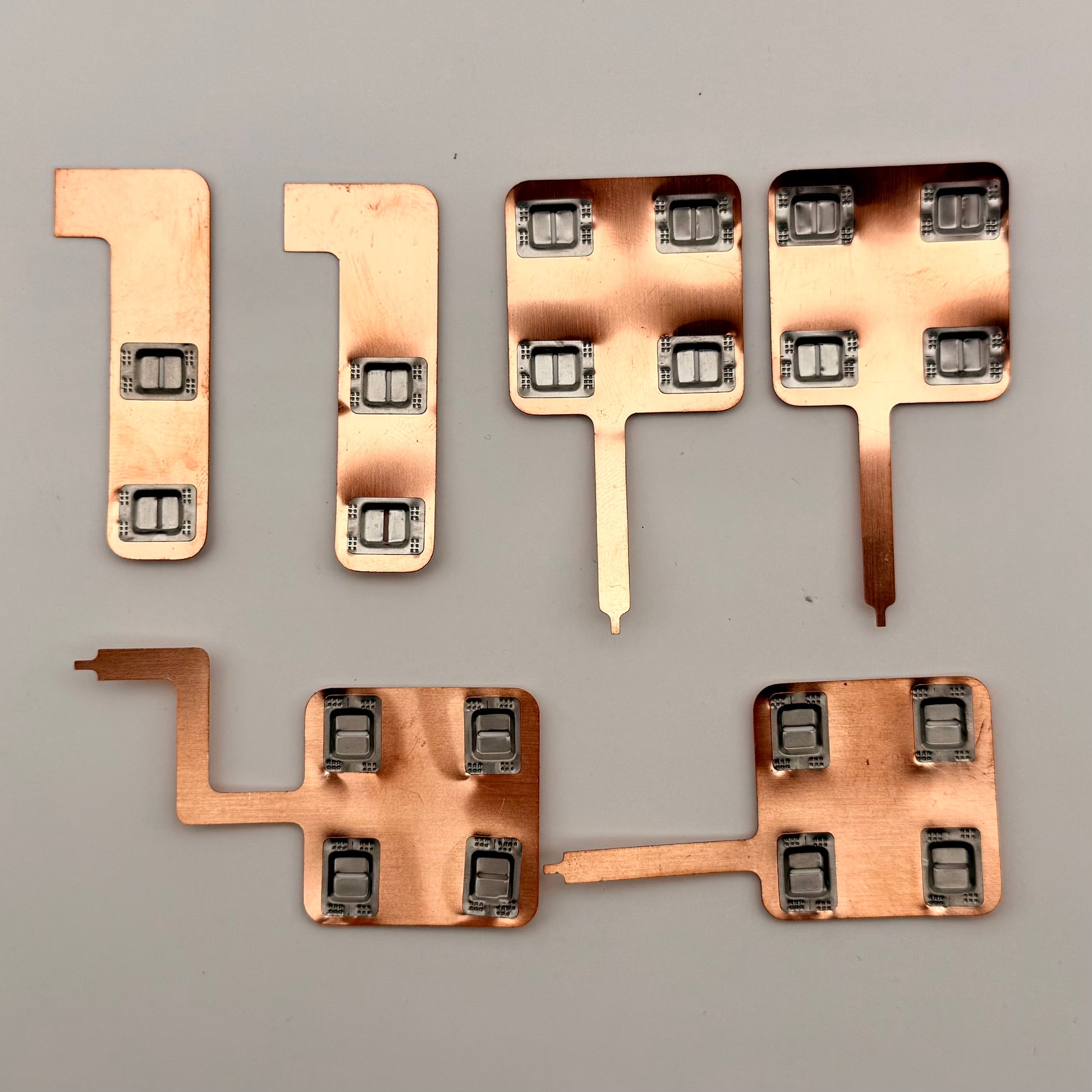

Pre-Cut Copper Busbar Set with Nickel Weld Pads – Milwaukee M18 8.0Ah (6 Pieces)

Six pre-cut copper busbars with nickel spot-weld pads, matched to the factory cell layout of the M18 8.0Ah pack. Solid copper carries the current with minimal resistance; nickel pads at every cell contact give clean, reliable welds. No measuring, no cutting, no guesswork.

Product Features

• Material: Solid copper busbar with nickel spot-weld pads at each cell contact point
• Why copper + nickel: the copper body carries current with far lower resistance and less heat than pure nickel, while the nickel pads spot-weld cleanly to the cells (bare copper won’t weld well)
• Thickness: 0.2 mm
• Piece count: 6 pieces per set
• Cut to shape: matched to the factory cell layout of the M18 8.0Ah pack
• Cell format: 21700
• Condition: Brand new

Fitment

• Fits Milwaukee M18 8.0Ah packs built on 21700 cells
• Does not fit M18 5.0Ah or 6.0Ah packs — those use 18650 cells and a different layout
• Does not fit M18 12.0Ah packs — different cell count and layout

What Is Included

• 6 pre-cut copper busbars with nickel weld pads — four main busbars plus two end busbars, forming one complete set for a single M18 8.0Ah pack

What Is Not Included

• Battery cells
• BMS / control board
• Housing, case, or hardware

Assembly Requirements

• Spot welding required
• Weld to the nickel pads, not the bare copper — copper doesn’t spot-weld well. Dial in your welder before committing welds.
• Experience with lithium pack assembly recommended

Important Safety Information

• Lithium battery work carries fire risk. Keep cells insulated, never short a pack.
• Spot welding produces fume. Work in a ventilated area.
• ⚠️ WARNING: Cancer — www.P65Warnings.ca.gov

Ships from California — fast U.S. delivery.

Additional Parts and Resources
For more battery rebuild supplies, cells, BMS boards, and nickel by the roll, visit our shop RenewSpark. We also offer the RenewSpark Tools app, built to help DIY builders and professionals with calculators and utilities for battery rebuilding projects.

Milwaukee and M18 are trademarks of their respective owners. This compatible product is independently manufactured and is not produced, sponsored, or endorsed by Milwaukee.
