How to Build a 2S2P 7.4V 21700 Li-ion Battery Pack (High Capacity DIY Guide)

How to Build a 2S2P 7.4V 21700 Li-ion Battery Pack (High Capacity DIY Guide)

⚠️ Safety Warning: Lithium-ion batteries are dangerous if mishandled. Risk of fire, venting, or injury. Always wear gloves and safety glasses. Use a spot welder (not a soldering iron) for cell connections. Test every cell before use. If in doubt, do not proceed.

This tutorial shows how to build a 2S2P 7.4V 21700 Li-ion battery pack with a 30A BMS and XT60 connector. This configuration doubles both the runtime and discharge capability compared to a simple 2S1P pack, making it perfect for RC vehicles, drones, robotics, and high-drain portable electronics.

Bill of Materials (Parts)

Parts we stock for this build

Molicel P42A 21700 4200mAh 45A li-ion cell
Molicel P42A – 21700 4200mAh 45A
Recommended cell · order 4 for this build · its 45A rating comfortably clears the 30A BMS
If you build with the P42A: two cells in parallel give 8400mAh rather than the 5400mAh quoted below. Voltage, wiring, nickel and BMS are all identical — every step in this guide applies unchanged, only the capacity figure moves.
Enerkey 2S 30A 7.4V to 8.4V lithium battery BMS protection board
Enerkey 2S 30A BMS Protection Board (7.4–8.4V)
SKU BM102 · $8.99 — the exact BMS used in this build
XT60 female connector pigtail with pre-wired 14 AWG silicone leads
XT60 Female Connector Pigtail – Pre-Wired 14 AWG Silicone Leads
5-pack $12.99 · 10-pack $23.99 · 20-pack $46.99
0.20mm pure nickel strip roll 10mm width for battery spot welding
0.20 mm Pure Nickel Strip Roll – 10 mm Width
25 ft $16.99 · 50 ft $24.99
Green electrical insulating fish paper sheet for lithium battery packs

Tools Needed

Pack Overview

  • Configuration: 2S2P (two series groups, each with two cells in parallel)
  • Nominal Voltage: 7.4V (8.4V full charge)
  • Capacity: ~5400mAh (2 × 2700mAh in parallel) — or ~8400mAh built with the Molicel P42A
  • Max Current: Up to 30A continuous (BMS rated)
  • Connector: XT60 (ideal for high-drain applications)

Wiring Notes

For a 2S2P pack:

  • Parallel pairs must be matched (same cell type & capacity).
  • Weld each parallel pair first, then connect pairs in series.

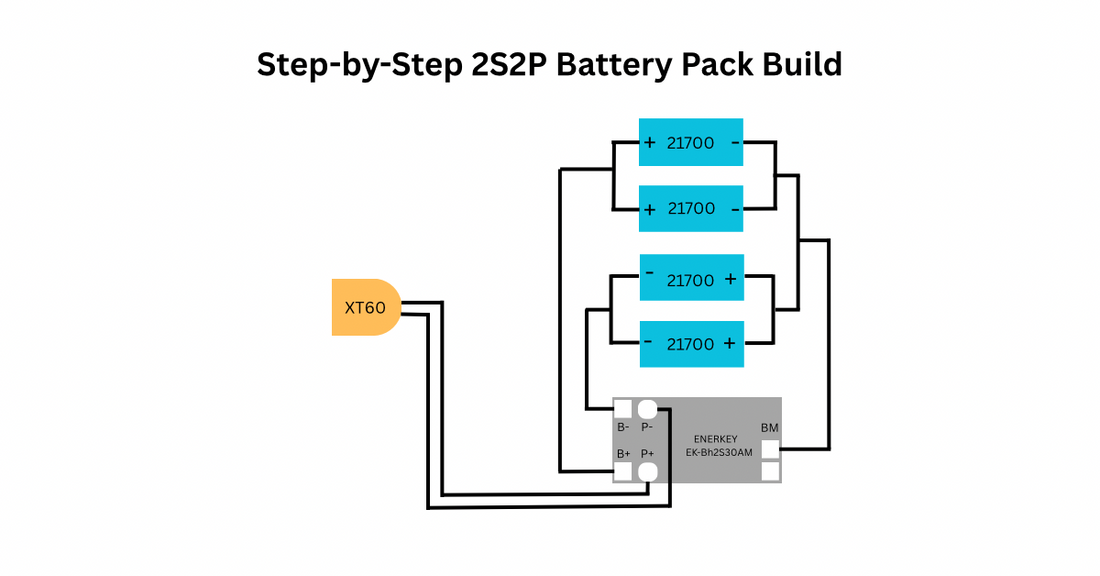

  • BMS pads: B− → pack negative, BM → series junction, B+ → pack positive, P−/P+ → output leads.

Step-by-Step Build

1) Test & Pair Cells

  1. Measure all 4 cells with a multimeter; voltages should match closely.
  2. Group cells into 2 parallel pairs (P1 = Cell A + Cell B, P2 = Cell C + Cell D).
  3. Spot weld nickel to connect each pair in parallel (+ to +, − to −).

2) Create Series Connection

  1. Orient the two parallel groups in series (P1 + connects to P2 −).
  2. Spot weld a nickel bridge between them to complete the 2S2P layout.

3) Wire the BMS (2S 30A)

  1. B− → Connect to the negative side of the first parallel group (Pack −).
  2. BM → Connect to the middle junction between the two series groups (the bridge between the first group’s positive and the second group’s negative).
  3. B+ → Connect to the positive side of the second parallel group (Pack +).
  4. P− / P+ → Run to the XT60 connector (P+ to XT60 positive, P− to XT60 negative).

4) Install XT60 Connector

  1. Solder P+ (pack positive) to XT60 + terminal.
  2. Solder P− to XT60 − terminal.
  3. Insulate joints and strain relieve with Kapton tape.

5) Wrap & Insulate

  1. Apply fish-paper between cell groups and under BMS.
  2. Slide heat shrink wrap over the pack and shrink evenly.

6) Final Tests

  1. Check total pack voltage (≈7.2–7.6V initially).
  2. Confirm polarity at the XT60 connector.
  3. Charge with a 2S Li-ion charger (8.4V). Monitor closely on first charge.

Troubleshooting

  • Uneven voltage: Verify parallel groups were properly welded and cells matched.
  • No output: Some BMS modules require initial charging to activate.
  • Overheating: Check for shorts, loose welds, or current overload.
